BRT-690T is a hand-held RF remote controller which can remotely control up to 8 loads within 20m. It can work together with our multiple control box to achieve different functions.

• Features
• Views
• Specification
• Installation
• Operation
• Application
• Download

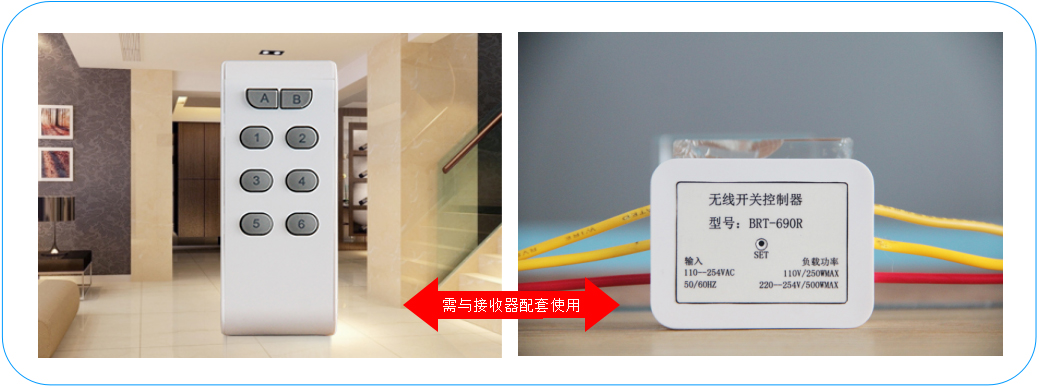

• When working together with our BRT-690R control box it can control the loads on/off;
  When working together with our BRT-691R control box or BRT-691L adapter it can control both the loads on/off and dimming;
  Good for all kinds of loads;
  ABS-V0 flame resistance case; and
  High quality build.

• Fig.1 and Fig.2 show the front view and the back view of BRT-690T RF remote controller respectively.





•

• BRT-690R RF On/Off control box requires both hot wire and neutral wire for installation.



  Fig.3 BRT-690S Wiring Diagram



  • Lean Code: after the control box is powered on poke the set button with a needle or sharp object twice the buzzer will sounds”Dee” and then press the button of the remote controller once. When buzzer sounds “Dee” again it means code learning is completed;
  • Turn on/off the loads: press the button once will turn on the loads press the button again will trun off the load;
  • Dimming the loads: press and hold the button will dim the light or change the fan speed;
  • Delete Code: poke the set button with a needle or sharp object for 3s untill the buzzer sounds “Dee” and the code is deleted successfully.

• BRT-690T can work together with our control box or adapter to replace the traditional wall mount switches.The users should only install the control box near or inside the load and do not need to make hole to wire and install remote controller. With our new designed control box and remote controller the users can get out of the complicated cabling and save time and money.

  BRT-690T has wide applications at various locations such as homes restaurants conference rooms theatres etc. It is perfect for bringing convenience and safety to our daily life and work.
