BRT-F005-T Fan Speed Control Switch with Rem

date:2017-08-18 14:22

BRT-F005-T is a speed control switch which has a built-in micro controller unit. In addition to a

wall mount keypad unit it also has a handheld remote control. The wall mount unit is designed for

easy installation and retrofit directly fit into standard wall box with no need for the neutral.


  • Features
  • Views
  • Specification
  • Installation
  • Operation
  • Application
  • Download
  • Two load control outputs one for fan and another one for lights;

    5 step speed control using wall mount keypads or a remote control ;

    Memory function. The motor always starts at last speed;

    Adjustable minimum speed.
    The minimum speed can be fine-tuned by the user to suit for all
    kind of motors;

    ABS-V0 flame resistance material; and

    Classical 86 series design and high quality build.

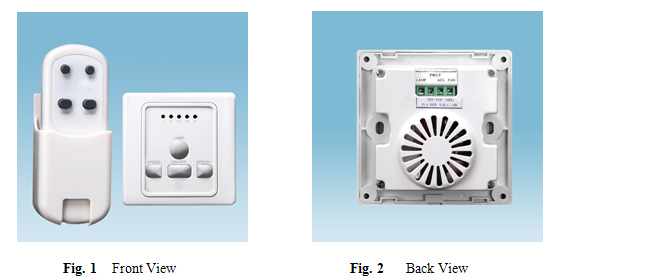

  •   Fig. 1 and Fig. 2 show the front view and the back view of BRT-F005-T fan speed control switch

      with remote control respectively.



      As shown in Fig. 1 and Fig. 2 BRT-F005-T speed control switch set includes a wall mount unit

      and a remote control. The wall mount unit has 4 control keypads and 5 LED speed indicators on

      the front and wiring terminal blocks on the back. The remote control has four control buttons and

      a wall mount bracket.

  •   BRT-F005-T speed control switch requires three wires for installation:

                    Hot wire (ACL): Coming from the power line with 220V;

                    LAMP: Going to the lamp; and

                    FAN: Going to the fan.

      The fan and lamp are then connected to neutral wire.



      Warning: Please make sure power is turned off before starting installation!

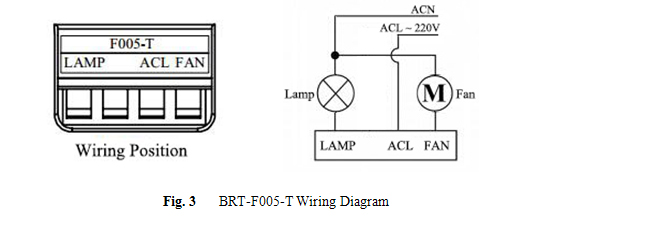

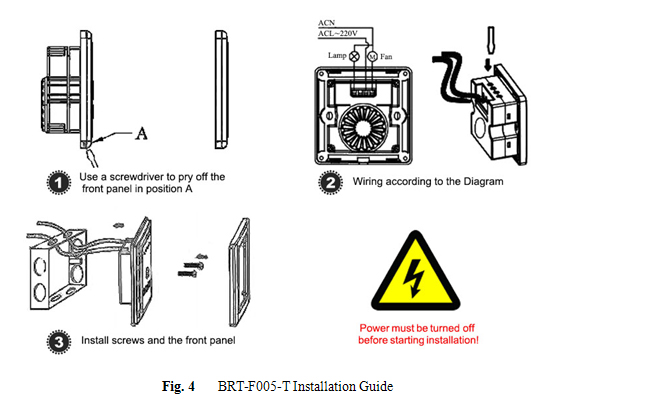

      Fig. 3 shows the wiring diagram and Fig. 4 shows the step-by-step installation instructions. There

      are three easy steps:

                 Step one:       Use a screwdriver to pry off the front plate in position A;

                 Step two:       Wiring according to the diagram and the labelled ports of the switch; and

                 Step three:     Install screws and front plate.



  •

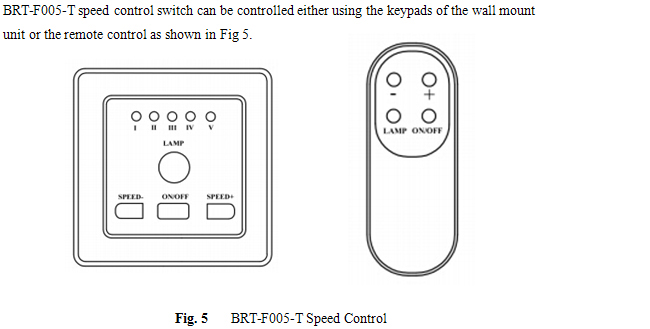

      Control using wall mount unit:  There are four keypads on the front panel. Pressing each

      keypad will turn on or turn off the fan or the lamp and change the fan speed.

               LAMP:          Pressing once will turn on the lamp and pressing again will turn off the lamp;

               ON/OFF:       Pressing once will turn on the fan and pressing again will turn off the fan;

               SPEED+:      Each pressing will increase the fan speed; and

               SPEED-:       Each pressing will decrease the fan speed.



      There are 5 speed settings I II III IV and V. The fan will start at the highest speed V for the first

      time operation. Then the memory function will enable the fan to always start at last speed.



      Control using remote:  There are four buttons on the remote. Pressing each button will turn on

      or turn off the fan turn on or turn off the lamp and change the fan speed.

               LAMP:          Pressing once will turn on the lamp and pressing again will turn off the lamp;

               ON/OFF:       Pressing once will turn on the fan and pressing again will turn off the fan;

               +:                  Each pressing will increase the fan speed; and

               -:                   Each pressing will decrease the fan speed.



      Again there are 5 speed settings I II III IV and V. The fan will start at the highest speed V for

      the first time operation. Then the memory function will enable the fan to always start at last

      speed.

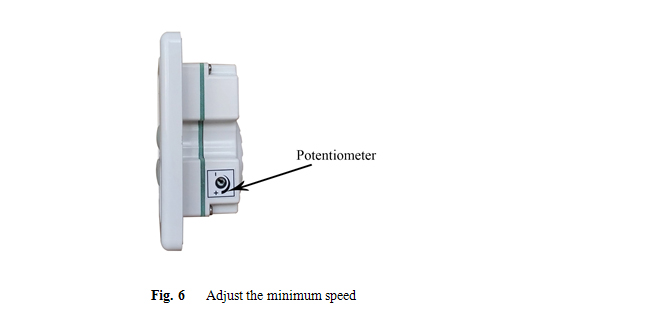

      Adjust the minimum speed: There is a potentiometer for minimum speed adjustment on the

      side of BRT-F005-T as shown in Fig. 6. Turn on the fan and run the fan at minimum speed. Then

      use a screw driver to adjust this potentiometer to obtain a minimum fan speed as desired.

      Note:   Adjusting the minimum speed is necessary for some motors or the motor may not move

             due to too low a driving voltage.

  • BRT-F005-T speed control switch is ideal for regulating the speed of all kinds of AC motors.
    It has wide applications at various locations such as homes schools laboratories hospitals
    bar restaurant etc to control the speed of ventilation fans pumps or blowers.
